Complete Plug & Play Kit | Fits Next-Gen Ford Ranger Raptor 2022+

Give your Next-Gen Ranger Raptor a bold, high-end upgrade with the LuxLED™ VOLCAN 180™ Curved LED Light Bar Kit — This isn’t just a universal light bar. The VOLCAN 180™ is engineered as a complete kit, built to integrate cleanly with your Raptor.

Featuring a striking Amber DRL accent light and a powerful Cool White main beam, this setup transforms the front of your Raptor into a true head-turner—day or night.

---

🔥 Curved Design = Wider Coverage + Cleaner Integration

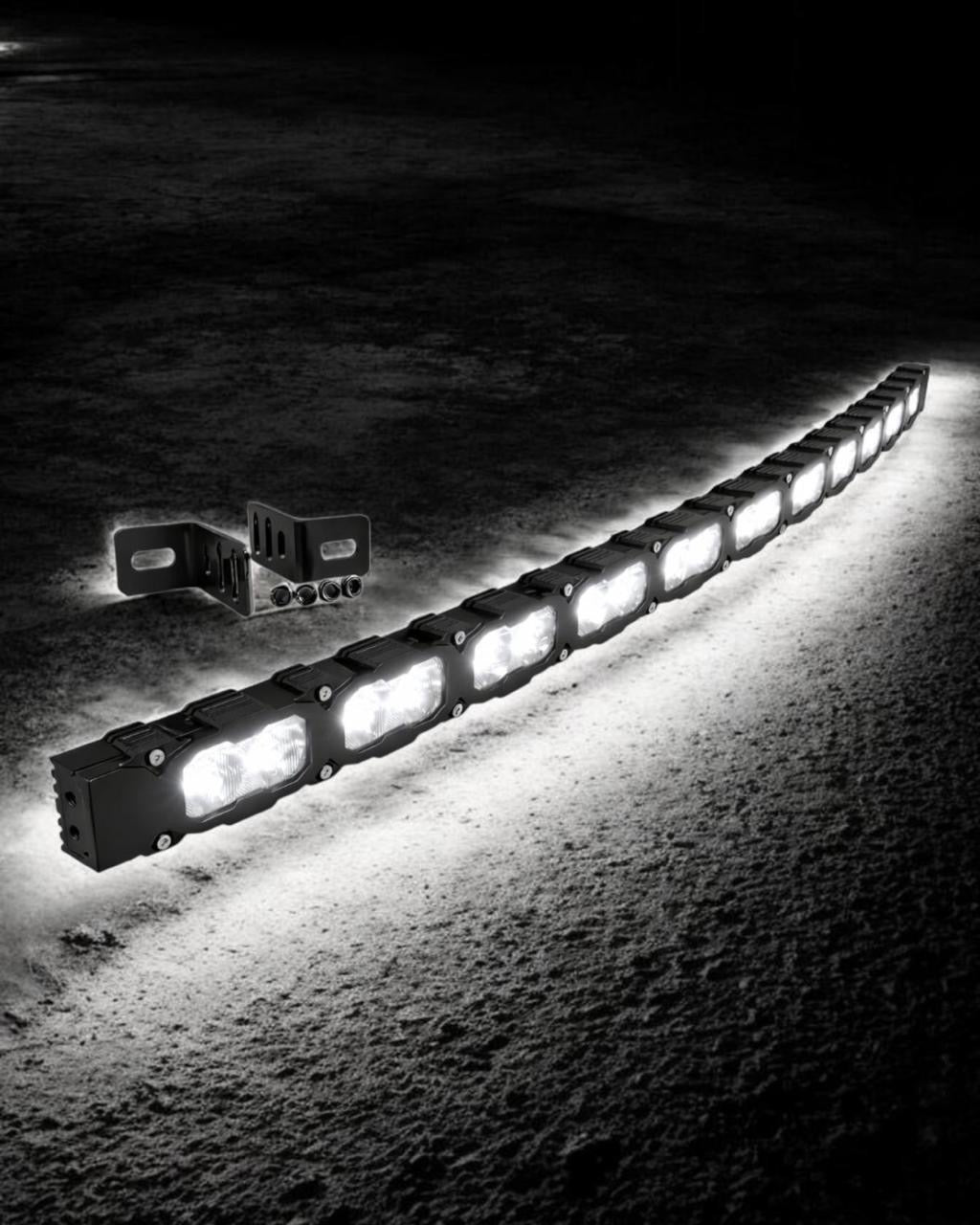

The VOLCAN 180™ features a 40-inch curved profile, allowing it to follow the natural lines of the Ranger Raptor.

Compared to standard straight bars, the curved design provides:

• Wider side-to-side beam spread

• Better peripheral coverage

• A cleaner, more premium factory-style appearance

More coverage. More presence. More control at night.

---

✅ Complete Kit – No Guessing, No Extra Parts Needed

The LuxLED™ VOLCAN 180™ is supplied as a full ready-to-install package.

Included in the kit:

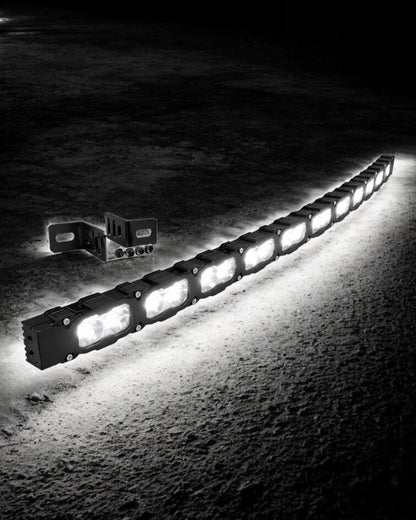

1x 40” Curved LED Light Bar

1x Ranger Raptor-specific bracket system (Australian-made)

1x  wiring harness

Mounting hardware

Perfect for DIY installation or workshop fitment.

---

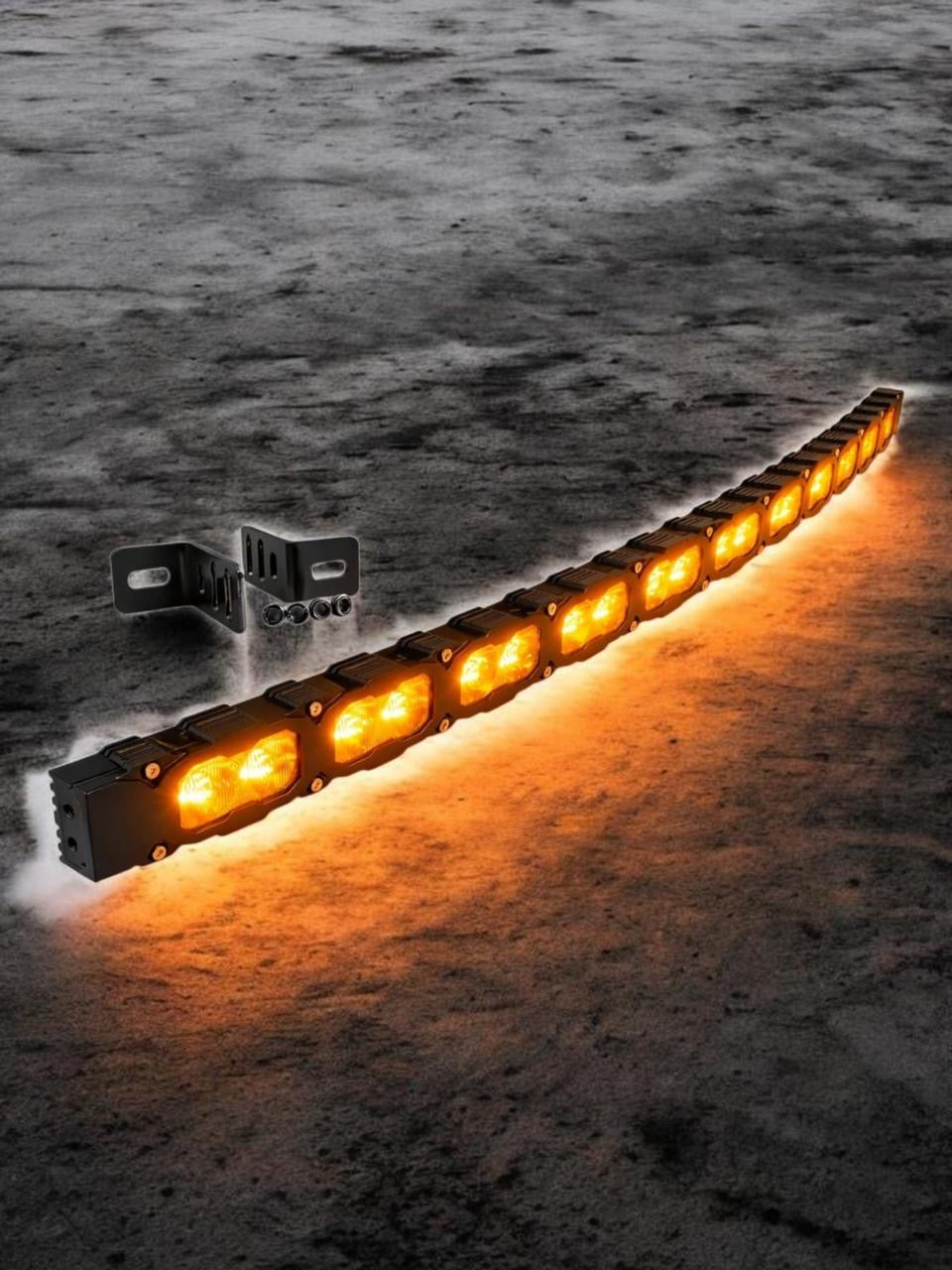

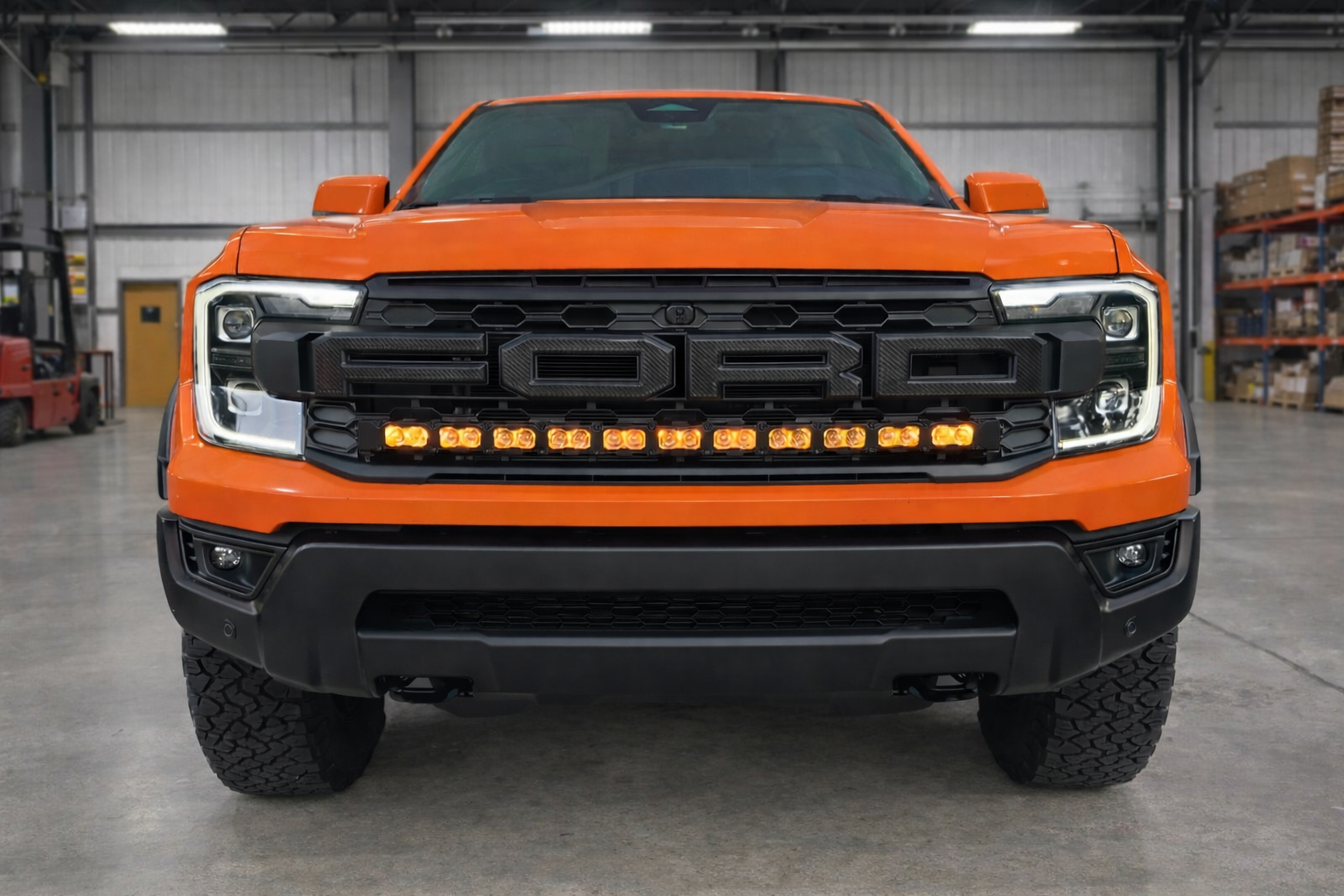

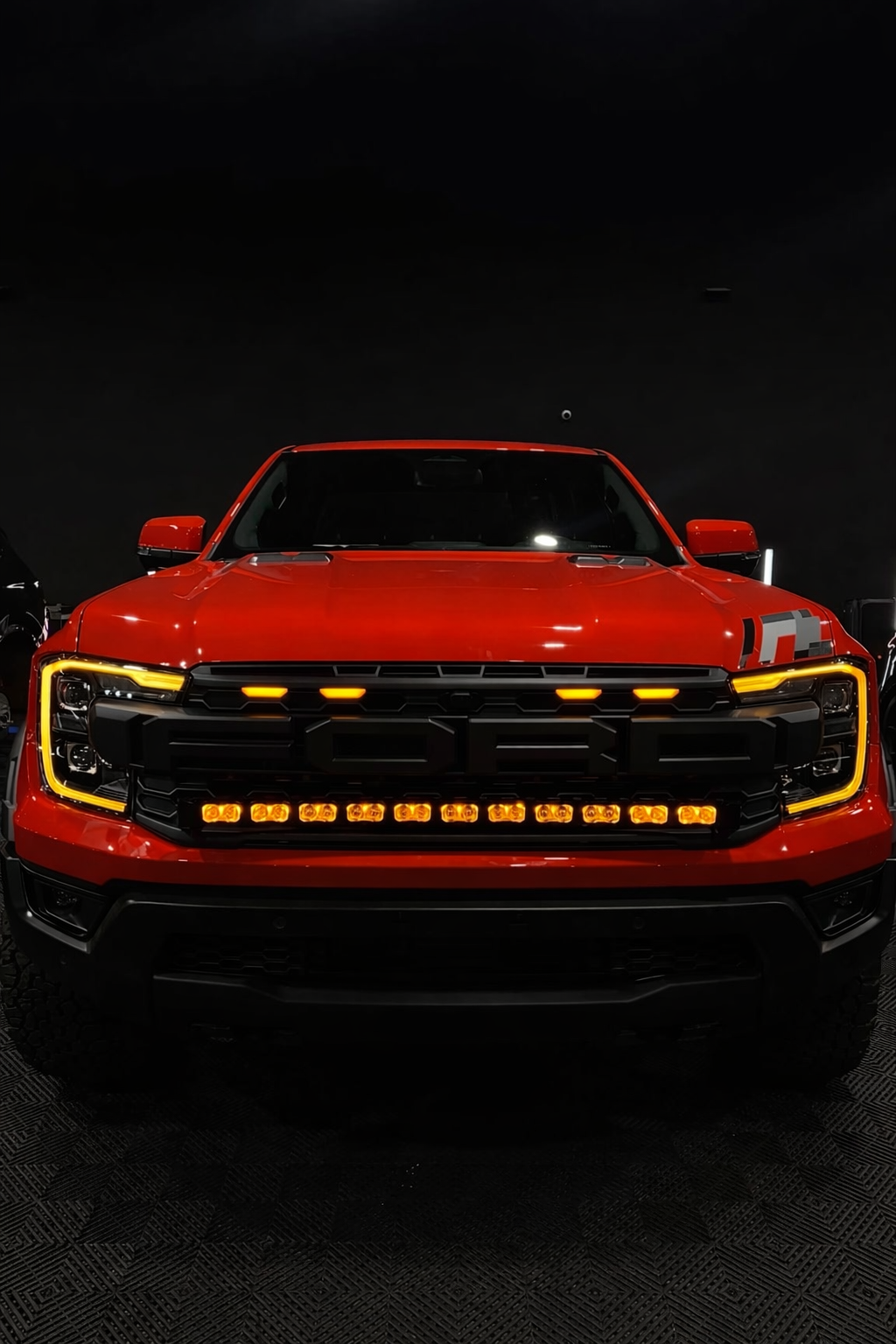

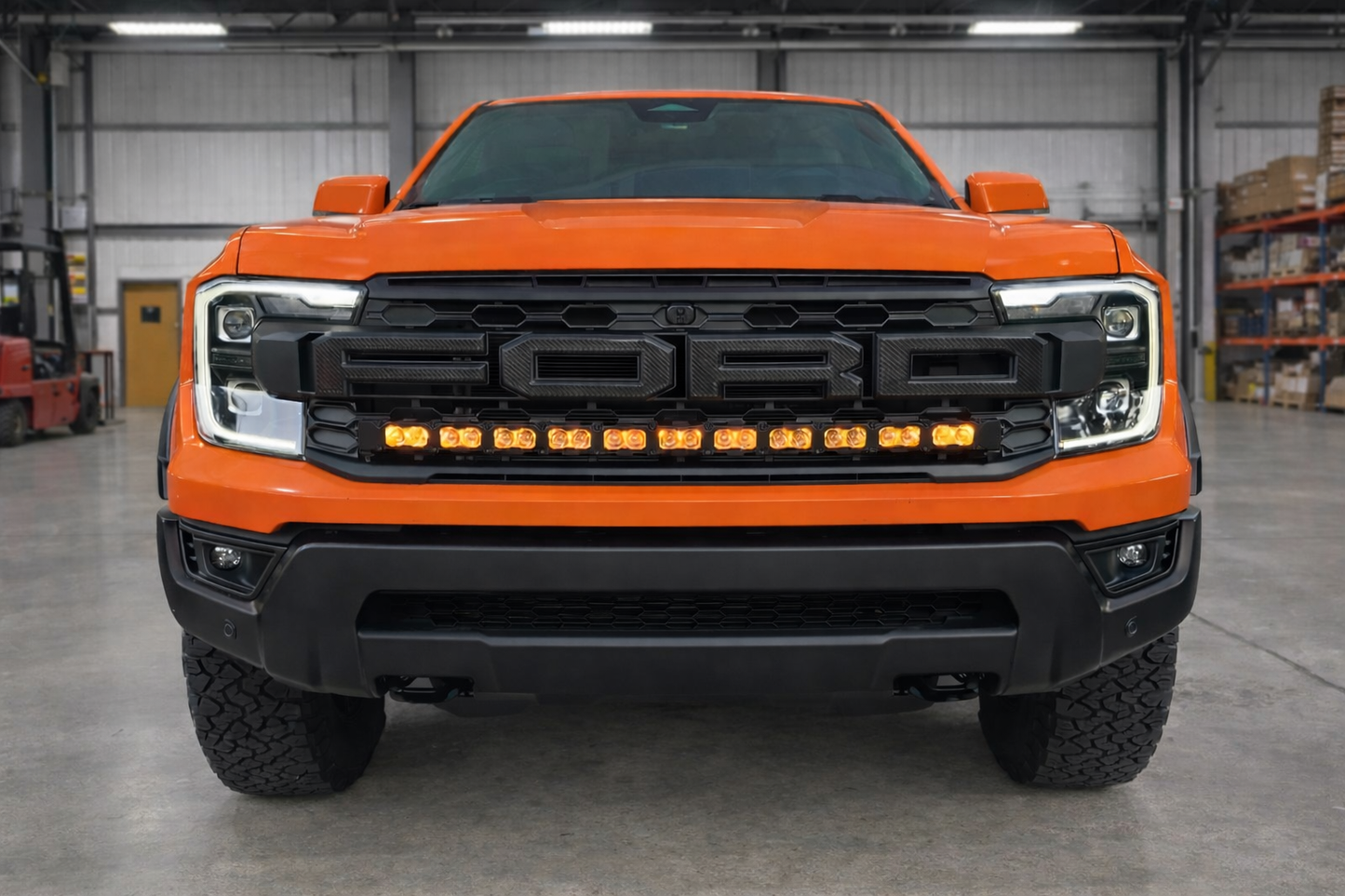

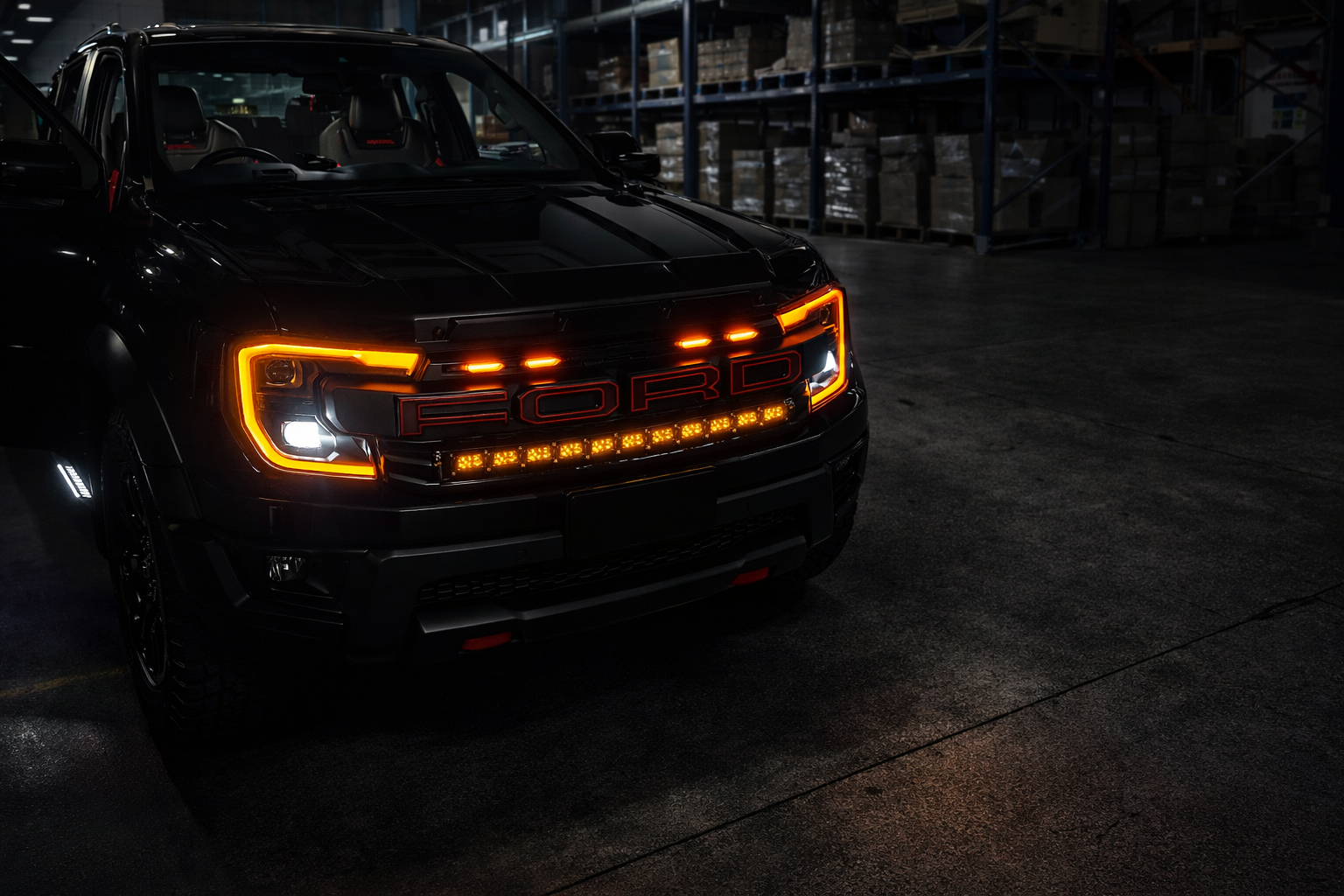

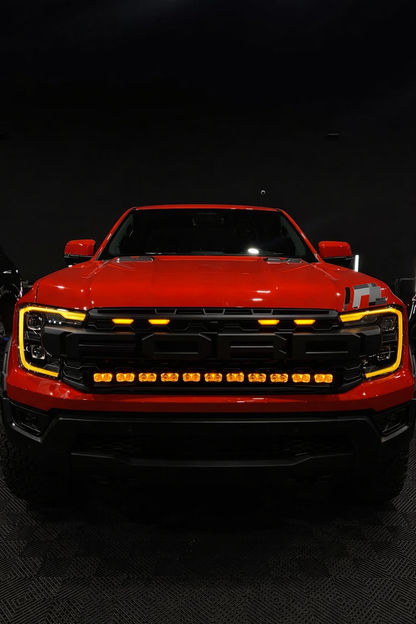

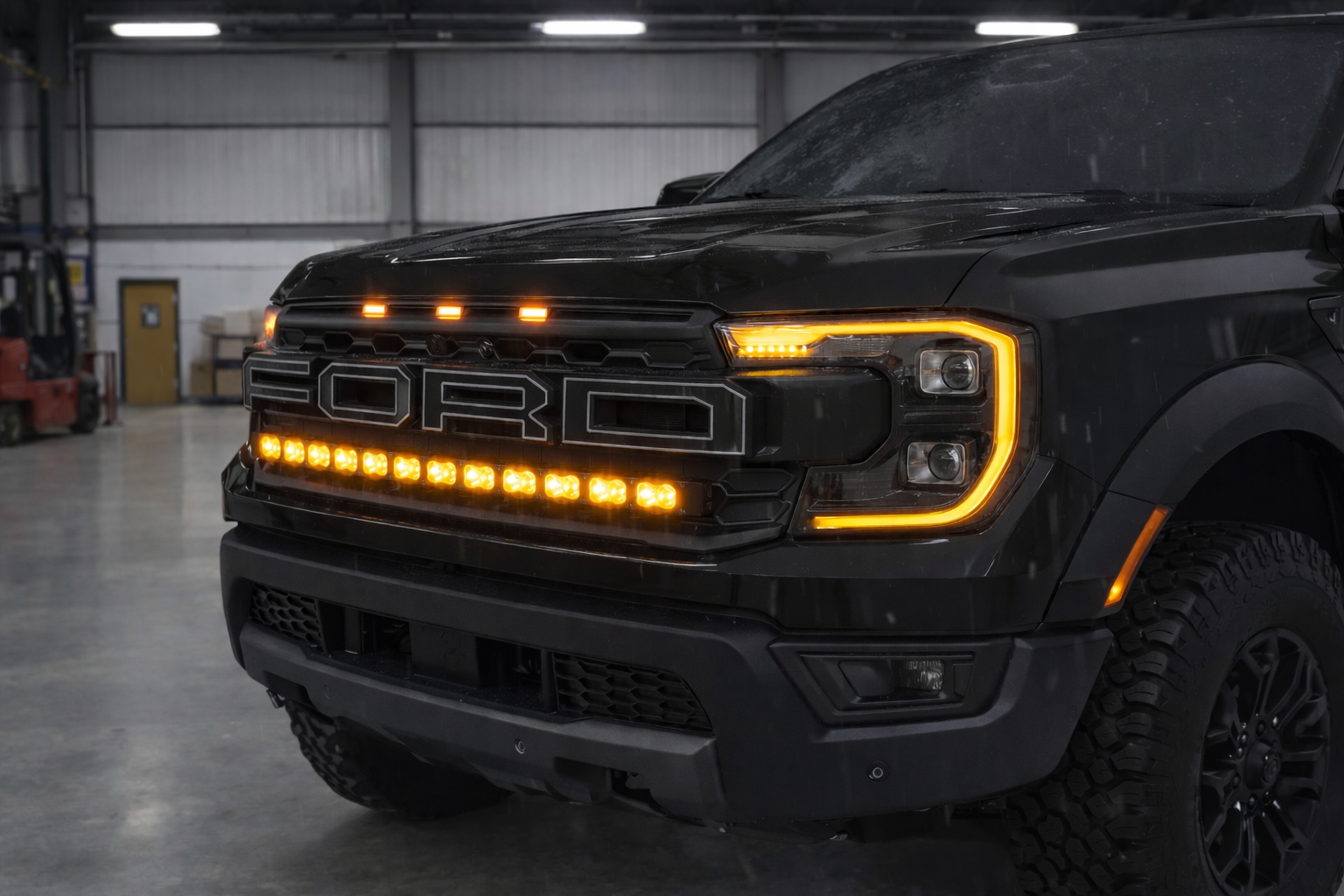

🟠 Amber DRL Accent + ⚪ White High Beam Power

This dual-colour system delivers both premium styling and serious driving performance.

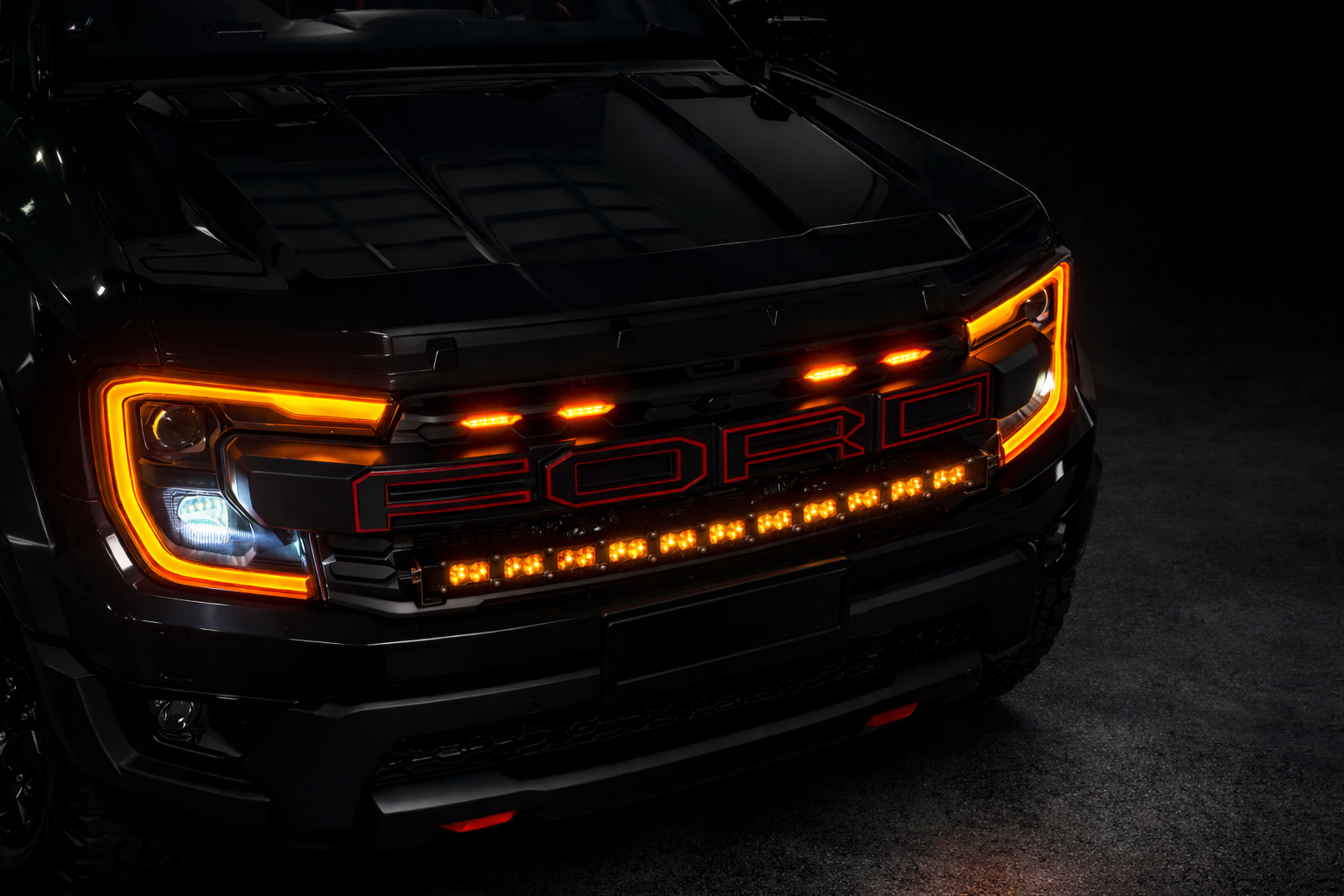

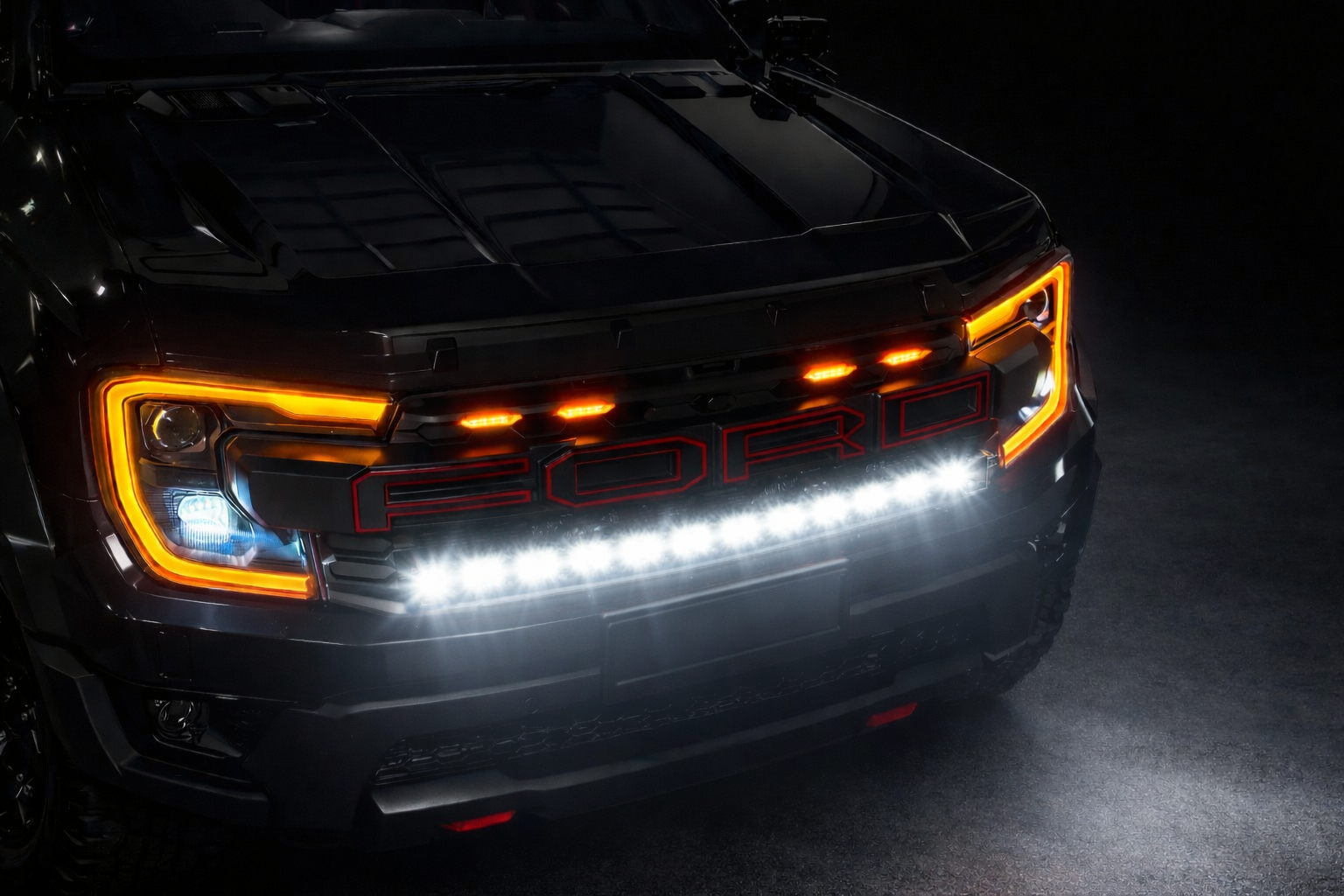

The amber DRL is designed to enhance the appearance of your Raptor with a bold modern accent. Since it produces minimal forward light output, it can be used as a stylish marker light without blinding oncoming traffic. The main cool white beam delivers crisp, high-output illumination for off-road and night driving.

• 6000K cool white output

• Spot / Driving / Combo beam pattern

• Can be synced to high beam (Aux 5 connection)

⚠️ White driving beam is for off-road use only.

---

💡 Advanced TIR Optics for Maximum Output

Built with premium TIR optical polycarbonate lens technology, the VOLCAN 180™ is engineered to maximize illumination and beam clarity.

High light transmission lens (>93%)

Scratch and fade resistant

Designed for strong distance and width performance

---

Built Tough for Any Conditions

Manufactured using premium materials to handle extreme environments and demanding off-road conditions.

CNC Machined 6063 Aviation Grade Aluminum Housing

UV-resistant powder coated finish

High thermal conductivity cooling grooves

Resistant to heat, impact, vibration, weather, and corrosion

---

IP68 Waterproof – Dustproof & Pressure Wash Safe

The VOLCAN 180™ is sealed with an advanced waterproof structure for harsh outdoor conditions. IP68 waterproof rating. Fully sealed against dust and water. Suitable for heavy rain, mud, and off-road use

---

Smart Electrical Protection

Engineered with built-in protection systems for reliability and long service life.

Reverse polarity protection

Over voltage / under voltage protection

Anti-interference design (no RFI/EMC radio disruption)

Input voltage range: 9–36V DC

---

Performance Specifications

Theoretical Max Power: 220W

Actual Power Draw: 125W

Main White Beam Current: 10.42A @ 12V

Amber DRL Current: 0.25A @ 12V

Theoretical Max Lumens: 24,024 lm

Measured Lumens (without lens): 15,224 lm

Measured Lumens (with lens): 12,108 lm

LED Type: Luminus SST-20 Ra70

LED Quantity: 22 pcs

Colour Temperature: 6000K Cool White

Beam Pattern: Spot / Driving / Combo

Lifespan: 50,000+ hours

Input Voltage: 9–36V DC

---

Housing: CNC’d 6063 aviation aluminum

Lens: Optical polycarbonate TIR lens

Bracket: 304 stainless steel (adjustable up to 30°)

Finish: UV-resistant powder coating

---

Warranty

✅ 24 Months Warranty

---

What’s Included

• LuxLED™ VOLCAN 180™ 40” Curved LED Light Bar

• Australian-Made Ranger Raptor Bracket System

•  Wiring Harness

• Mounting Hardware

• Standard packaging box

---

LuxLED™ VOLCAN 180™ – Signature Lux Style, Built for the Raptor

If you want a light bar that looks clean, performs hard, and gives your Ranger Raptor a truly premium finish — the VOLCAN 180™ is the upgrade you’ve been waiting for.

Amber DRL style by day.
White beam dominance by night.
