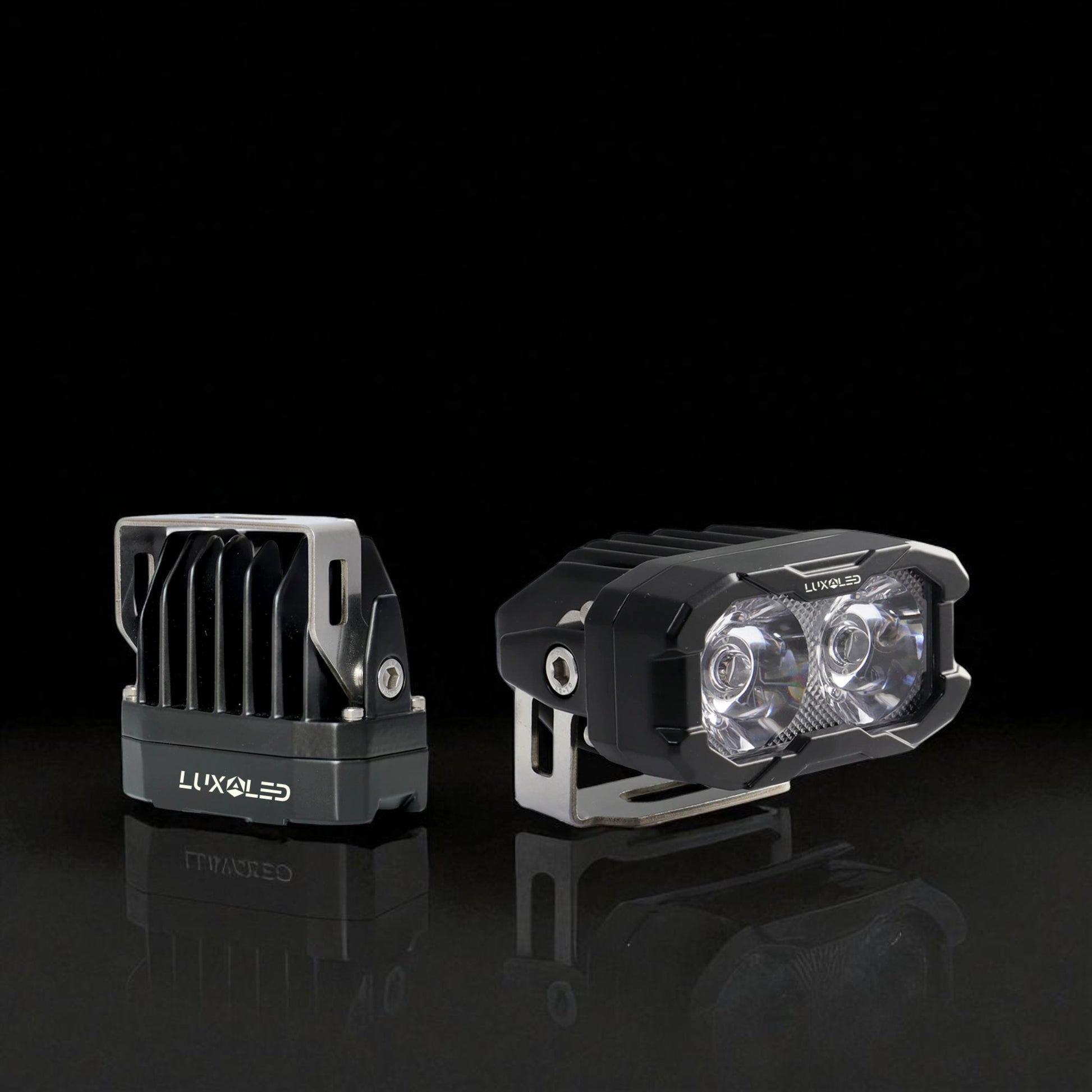

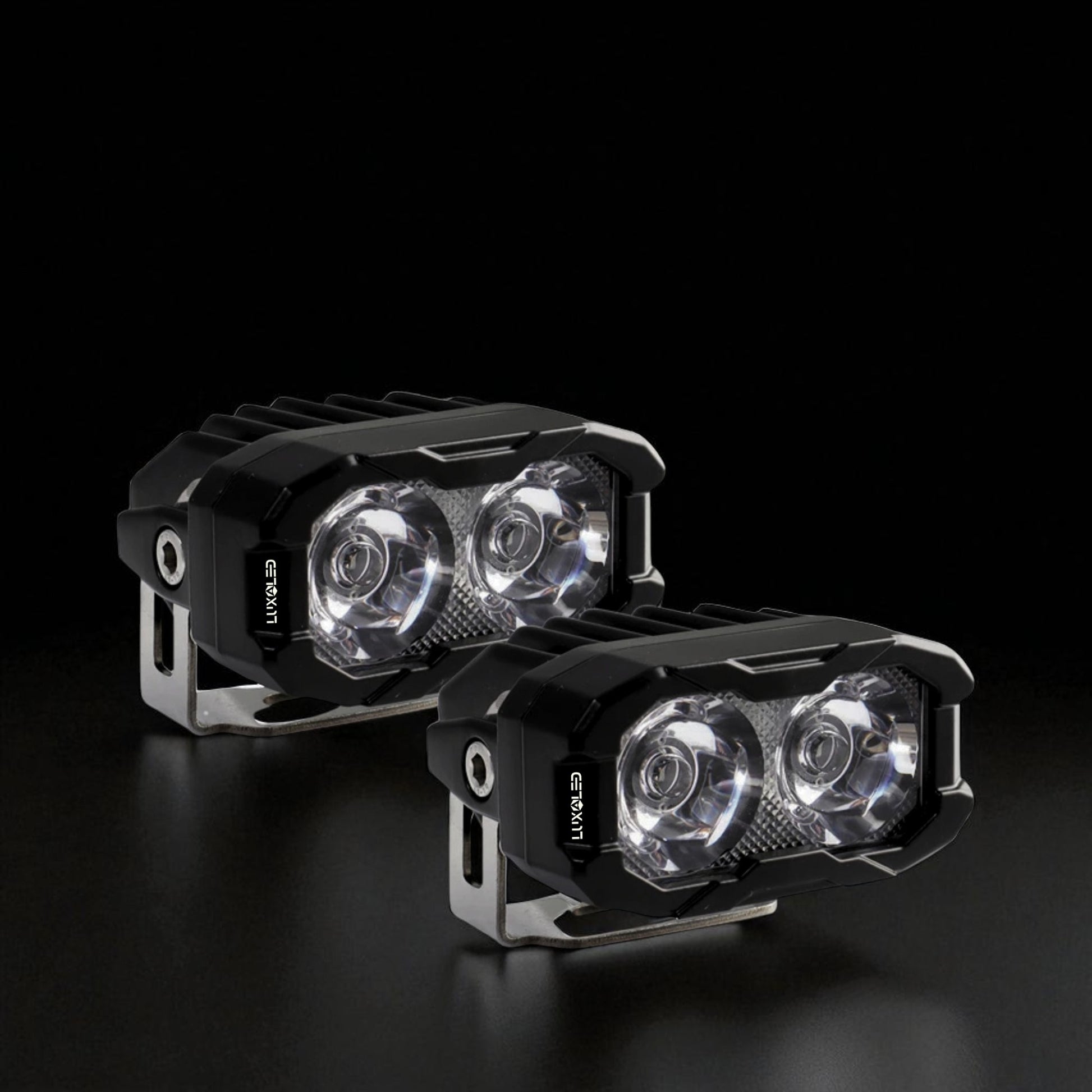

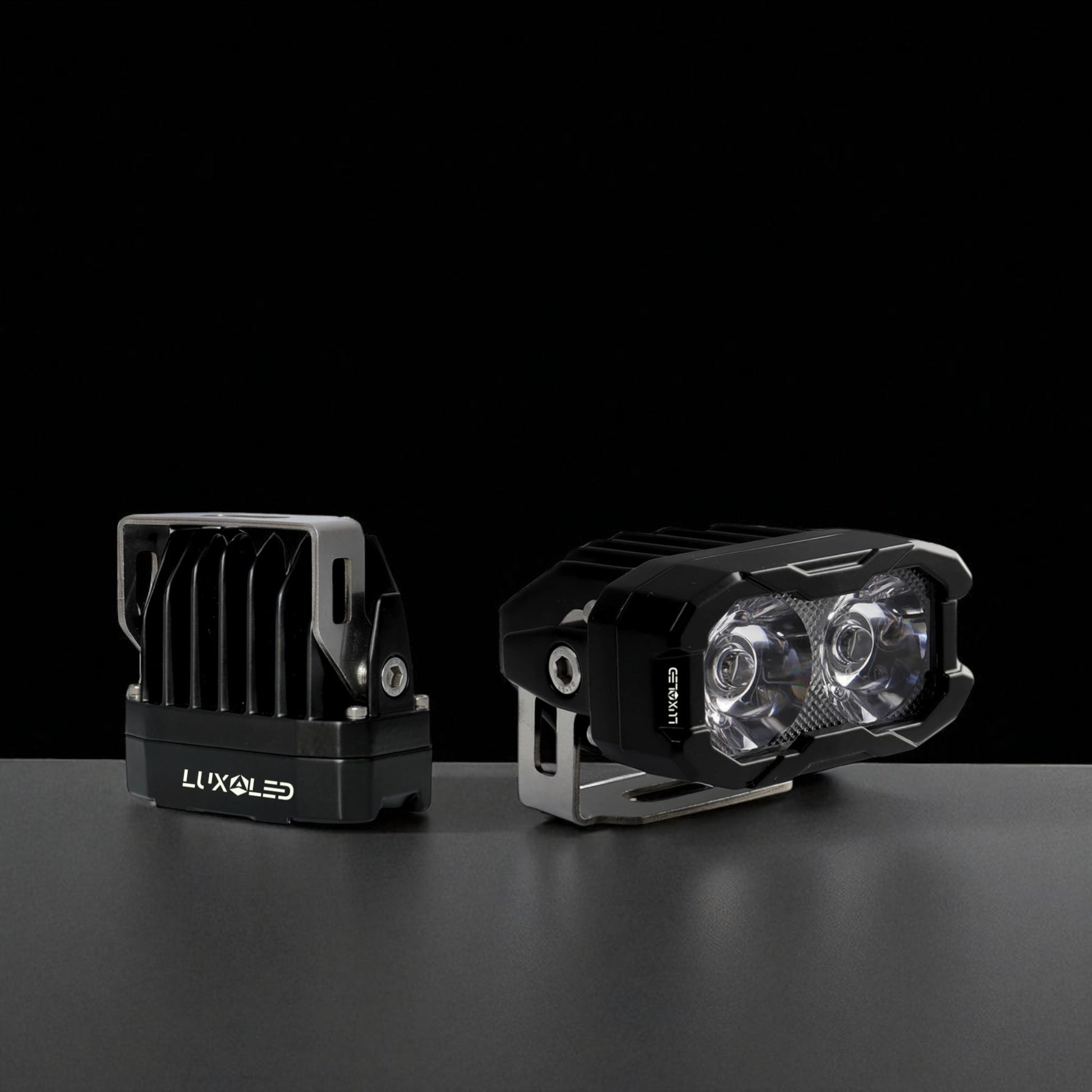

LuxPod 20W Spot Lights (1 Pair)
LuxPod 20W Spot Lights (1 Pair)
Couldn't load pickup availability
The LuxPod 20W Spot Lights are engineered for ultimate off-road performance, combining high-intensity 10W LEDs with customized TIR optics for maximum illumination efficiency. With an amber backlight and multiple optic options (spot, driving, or flood), they provide versatile lighting for any adventure.
Built tough with a high-grade aluminum alloy housing, UV-resistant powder coat, and IP68/IP69K waterproof protection, these lights are designed to withstand the harshest environments. The active thermal management system and passive cooling fins ensure long-lasting reliability, while the 115° adjustable stainless steel bracket provides flexible installation.
Key Features
-
High-Intensity LED Chips – 2 × 10W LEDs deliver bright, efficient light output.
-
Customized TIR Optics – Japanese PC lens, >93% light transmittance, scratch and weather resistant.
-
Beam Options – Spot, Driving, or Flood optics for tailored performance.
-
Amber Backlight – Stylish and functional for added visibility.
-
Advanced Electronics – Reverse polarity, high/low voltage, and EMC/RFI protection.
-
IP68/IP69K Waterproof – Submersible up to 1.2m, dustproof, and pressure washable.
-
Premium Build – Die-cast aluminum housing with UV-resistant powder coat finish.
-
Optimized Cooling – Passive cooling fins and active thermal management.
-
Flexible Mounting – Black stainless steel bracket adjustable up to 115°.
-
Durability – CE & RoHS compliant, impact-resistant, suitable for extreme off-road racing.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | LuxPod 20W Spot Lights |
| Operating Voltage | 9–36V DC |
| Power | 20W (2 × 10W LEDs) |
| Color Temperature | 6000K (main beam) + Amber backlight |
| Beam Pattern | Spot (standard) / Driving / Flood options |
| Lens Type | Optical polycarbonate TIR lens (Japanese PC, >93% transmittance) |
| Waterproof Rating | IP68 / IP69K – submersible up to 1.2m, pressure washable |
| Housing Material | High-grade aluminum alloy, die-cast |
| Coating | UV-resistant, anti-corrosion powder coat |
| Electronics | Reverse polarity, high/low voltage, RFI/EMC interference-free |
| Thermal Management | Active system + passive cooling fins |
| Bracket | Black 115° adjustable stainless steel |
| Wiring | 3-core bare input wire |
| Operating Temperature | -30℃ ~ +70℃ |
| Compliance | CE & RoHS compliant |
| Lux Performance | 466 lux @ 10m (ARS2 Spot) / 635 lux @ 10m (ARS2-PRO Spot) |
| Dimensions (L × D × H) | 3.2" × 2.8" × 2.2" (H: 1.7") |
