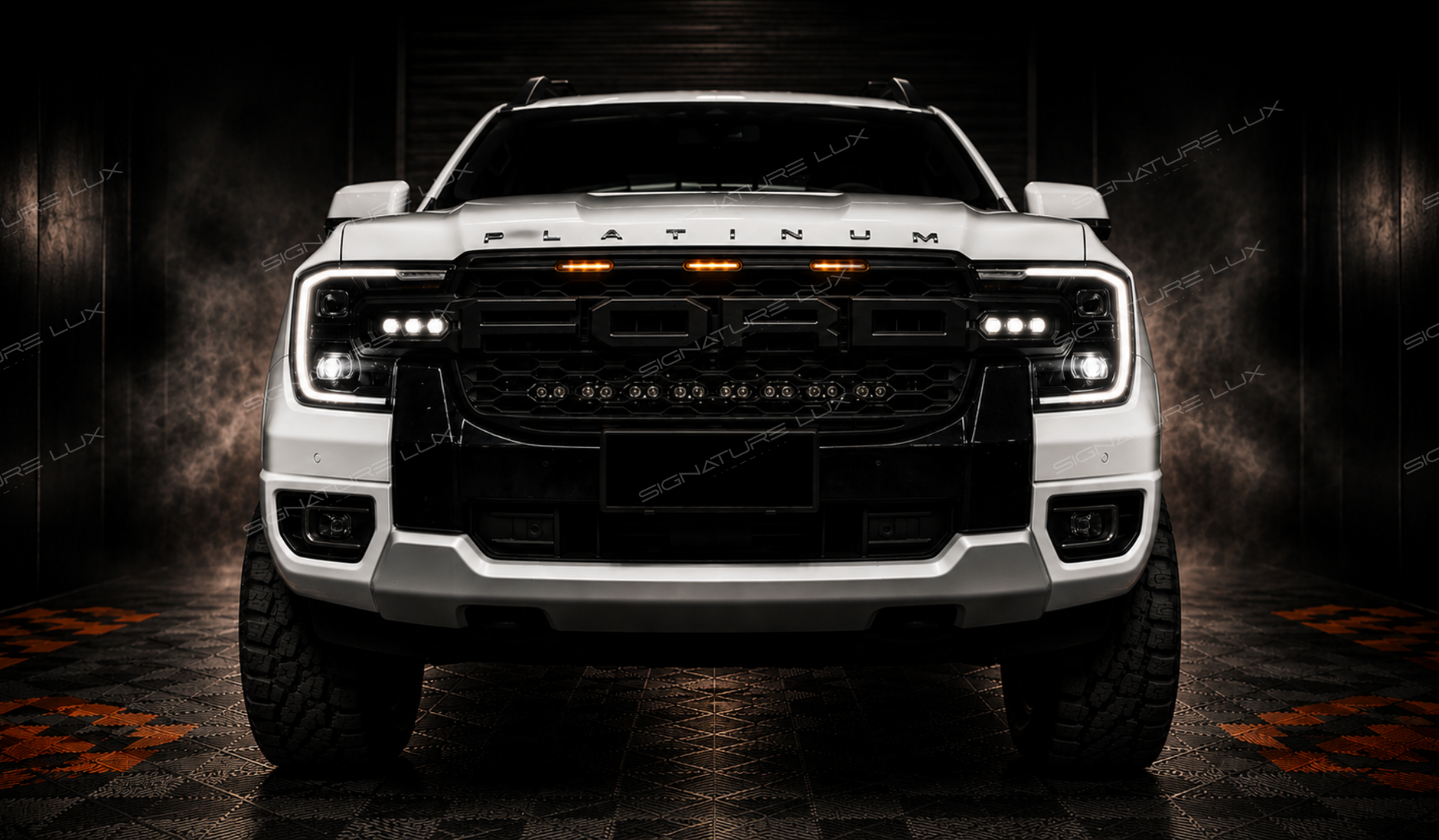

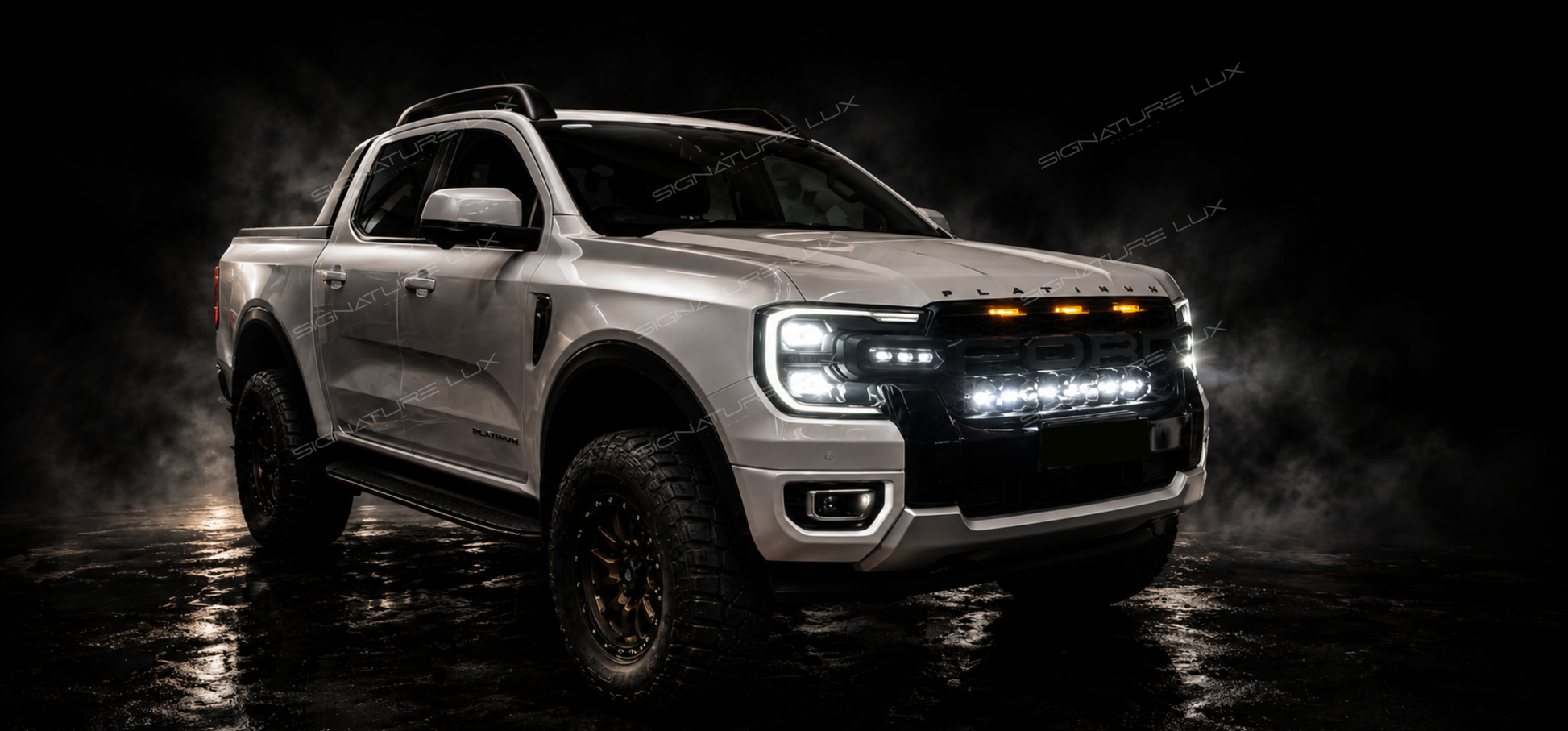

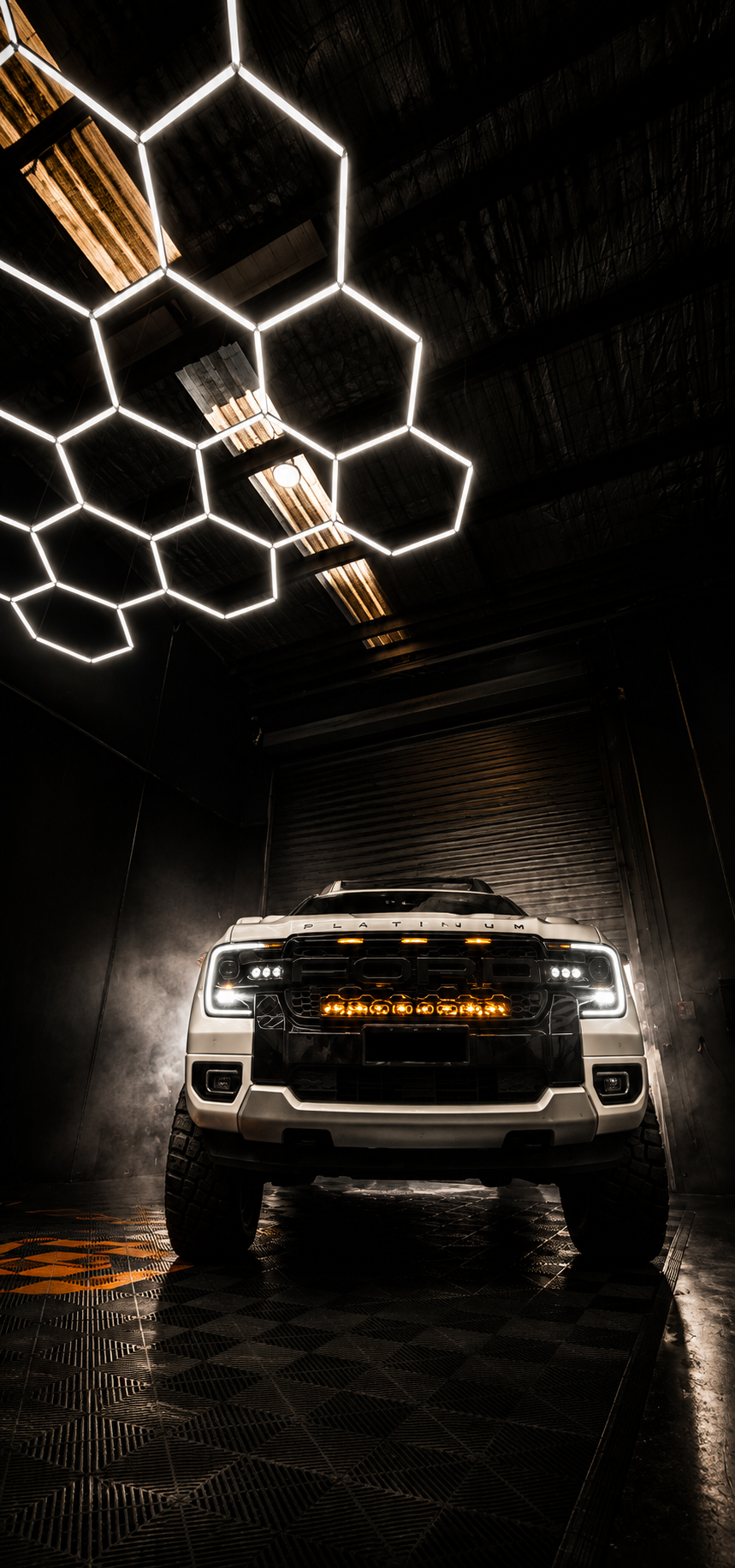

Featuring a sleek Amber Backlight DRL and a powerful Cool White Driving Beam, this kit delivers premium styling by day and exceptional visibility by night.

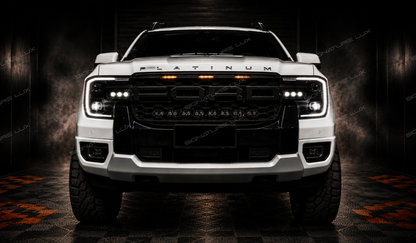

🔥 Purpose-Built Behind-Grille Design

The TitanArc™ 30 has been carefully selected to fit neatly behind:

• Next Gen Ranger Raptor
• Next Gen Ranger (with aftermarket grille)
• Next Gen Everest (with aftermarket grille)

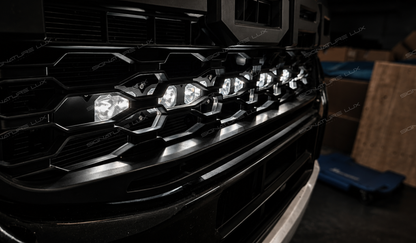

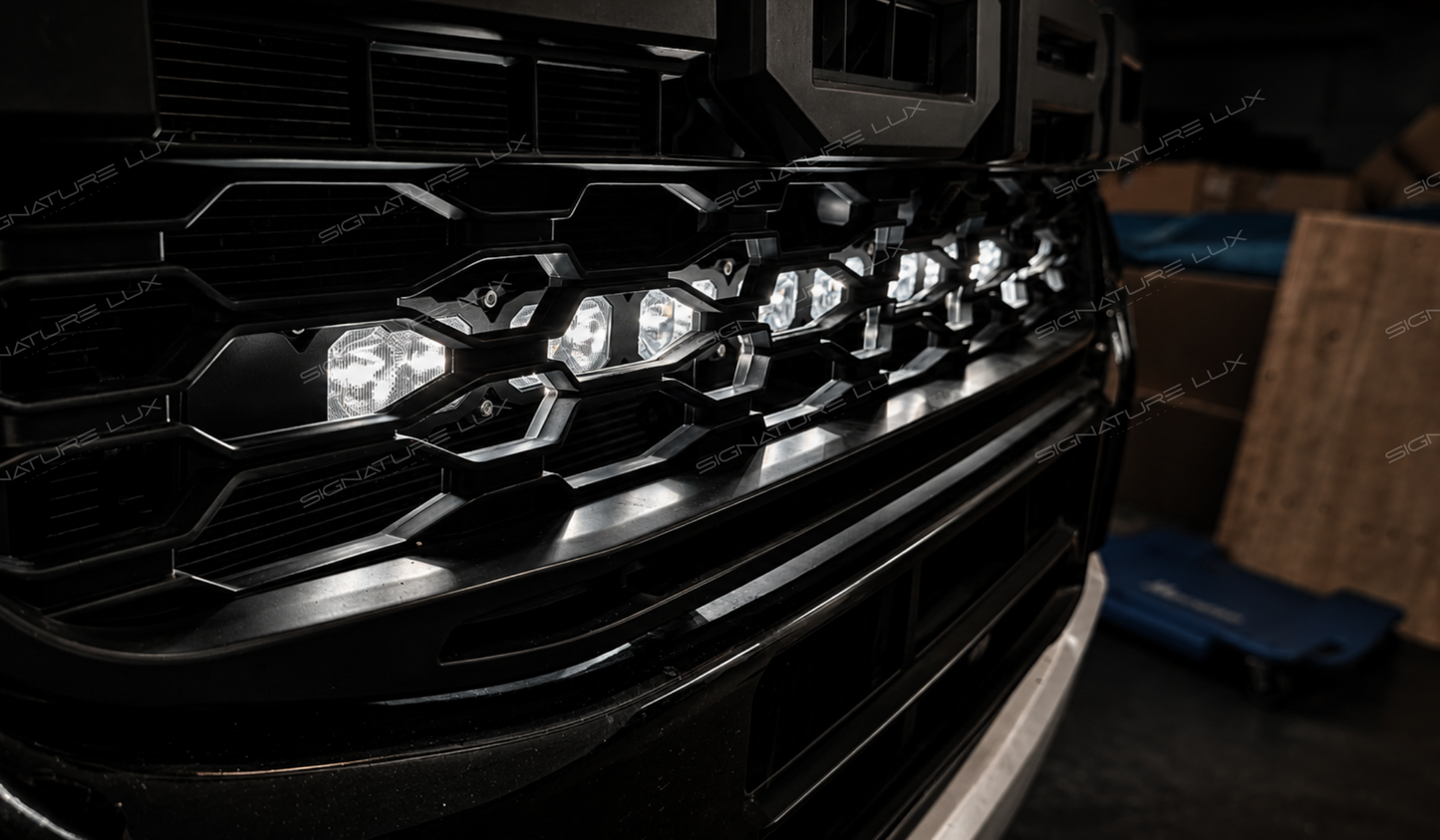

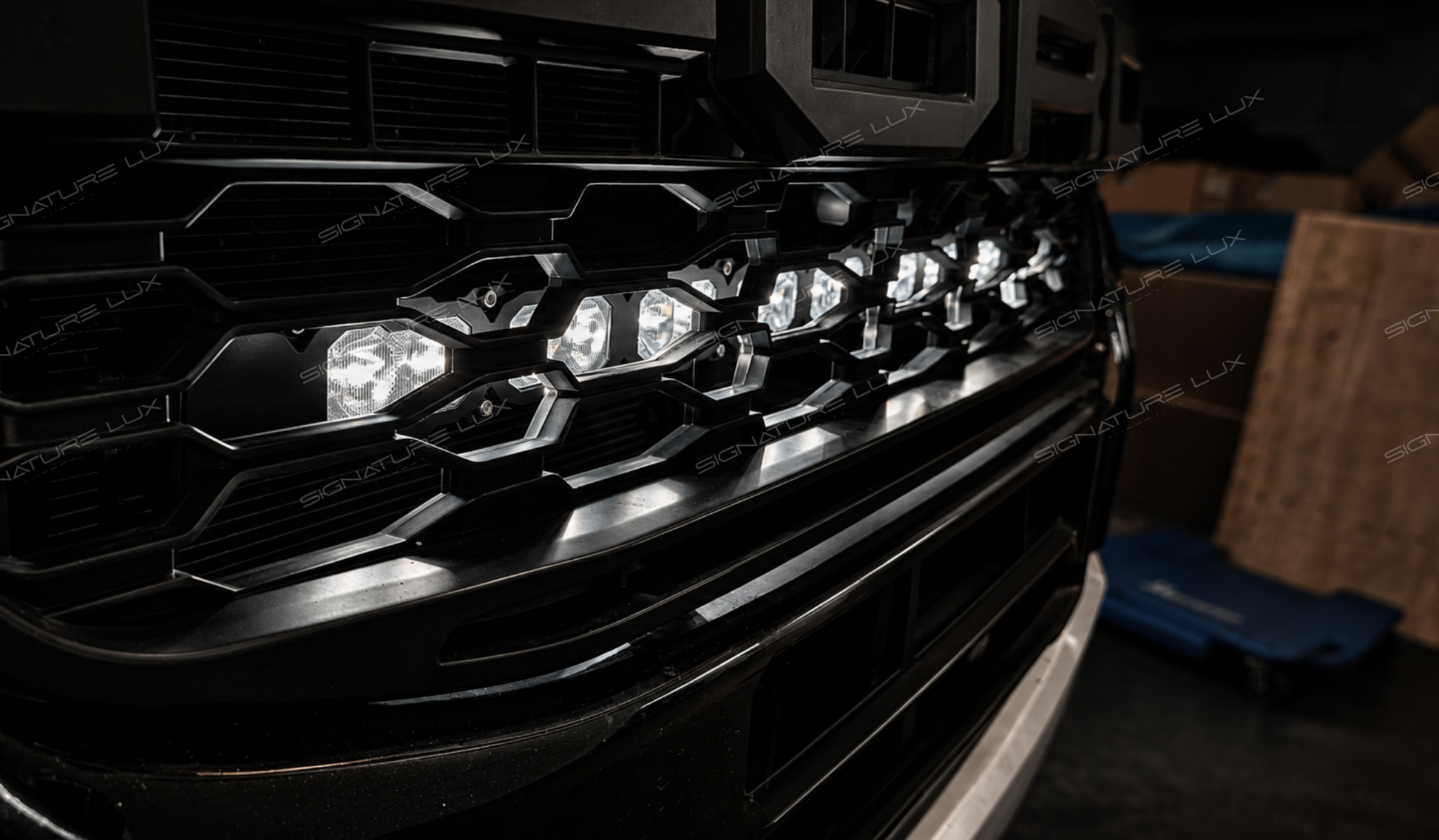

The low-profile design allows the light bar to remain hidden behind the grille while still providing impressive light output when activated.

Benefits:

✅ Clean OEM-style appearance

✅ Protected mounting position

✅ No bulky external brackets

✅ Maintains aggressive Raptor-style front-end styling

✅ Complete Ready-to-Install Kit

No guessing. No additional hardware required.

Included in the kit:

• 1x TitanArc™ 30" LED Light Bar
• Vehicle-specific mounting brackets
• Wiring harness
• Mounting hardware
• Installation instructions

Suitable for DIY installation or professional fitment.

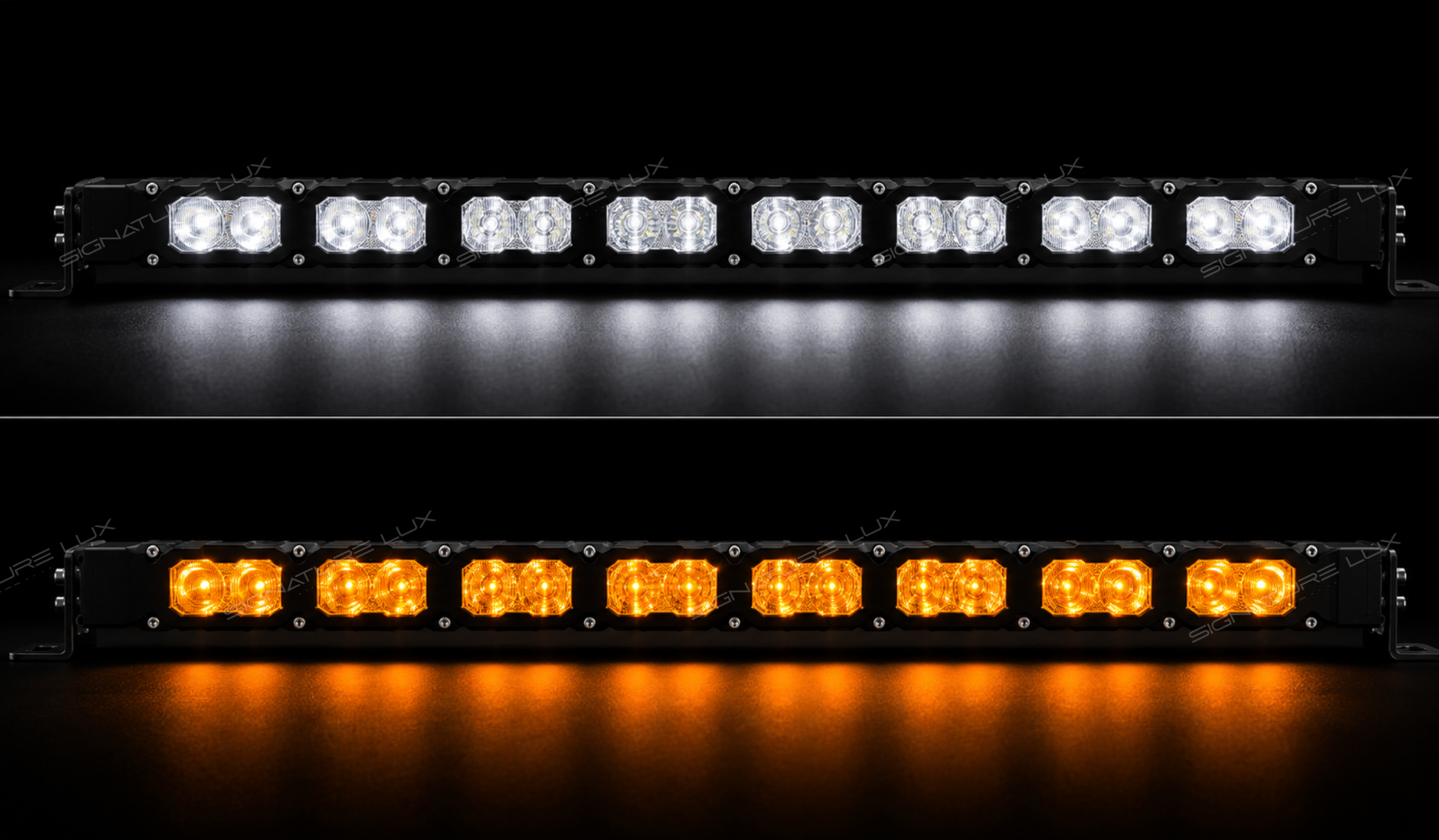

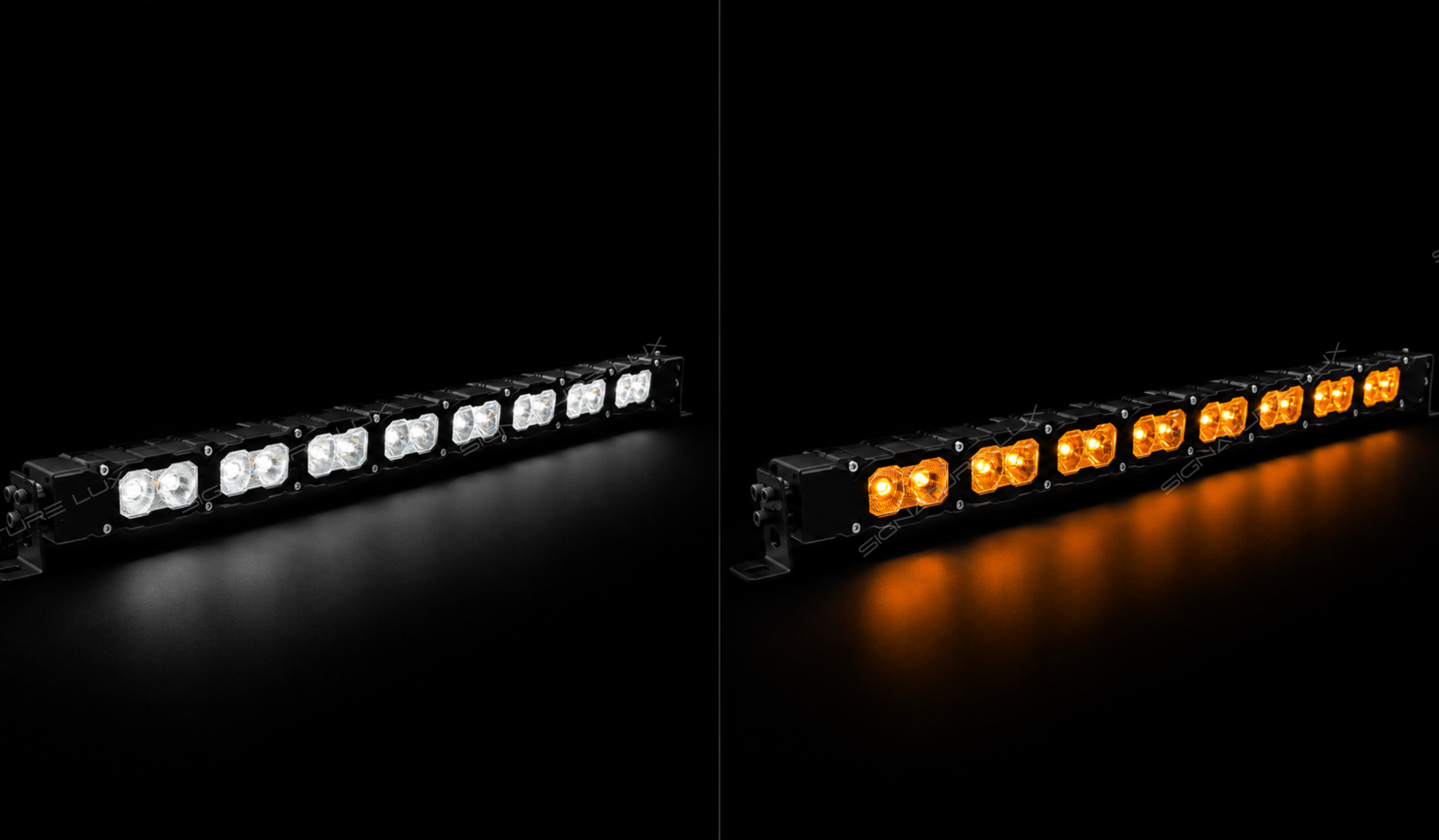

🟠 Amber Backlight + ⚪ White Driving Beam

The TitanArc™ 30 combines modern styling with practical functionality.

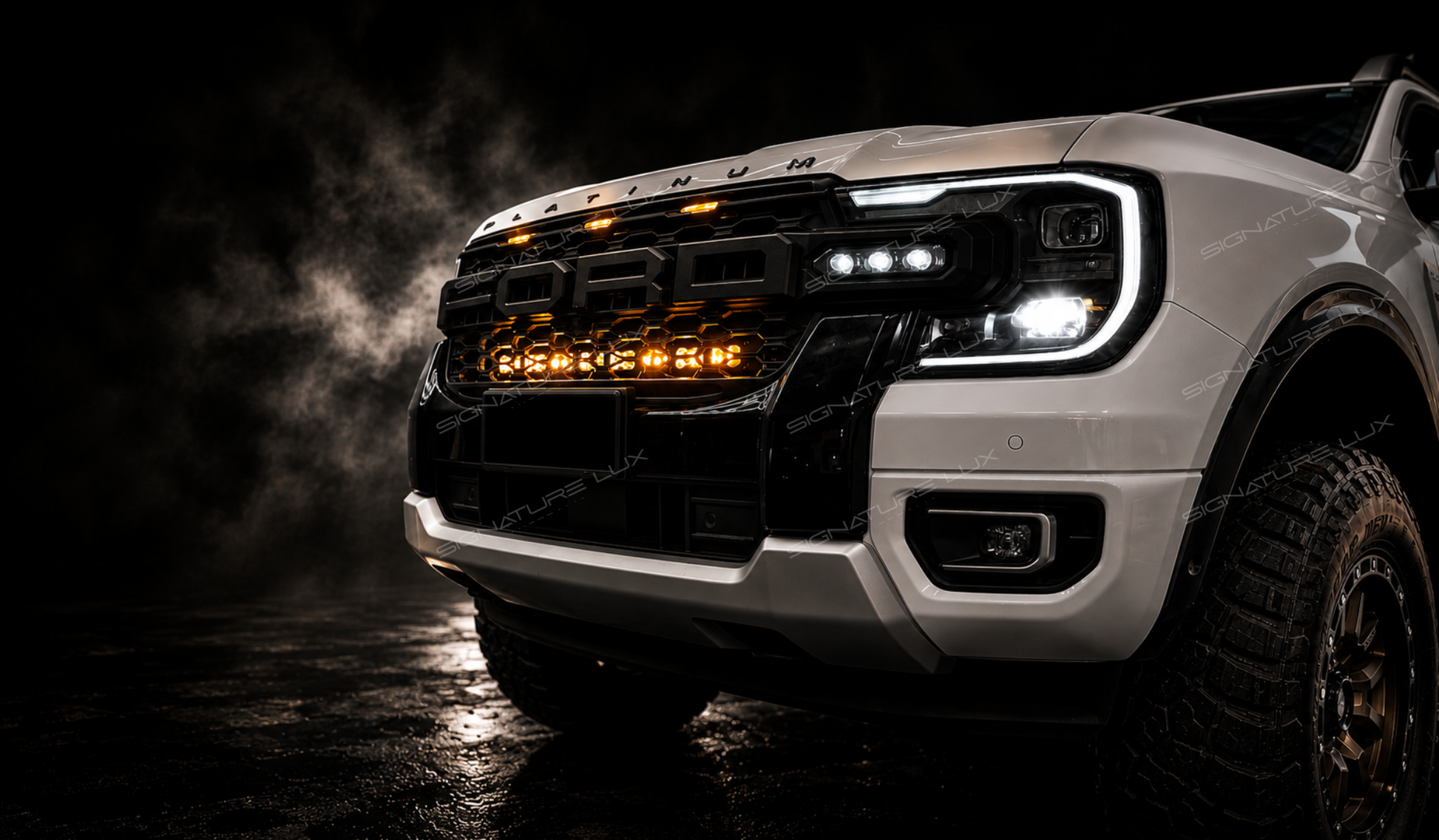

Amber Backlight

The integrated amber backlight creates a premium accent glow behind the grille and can be wired independently for daytime styling.

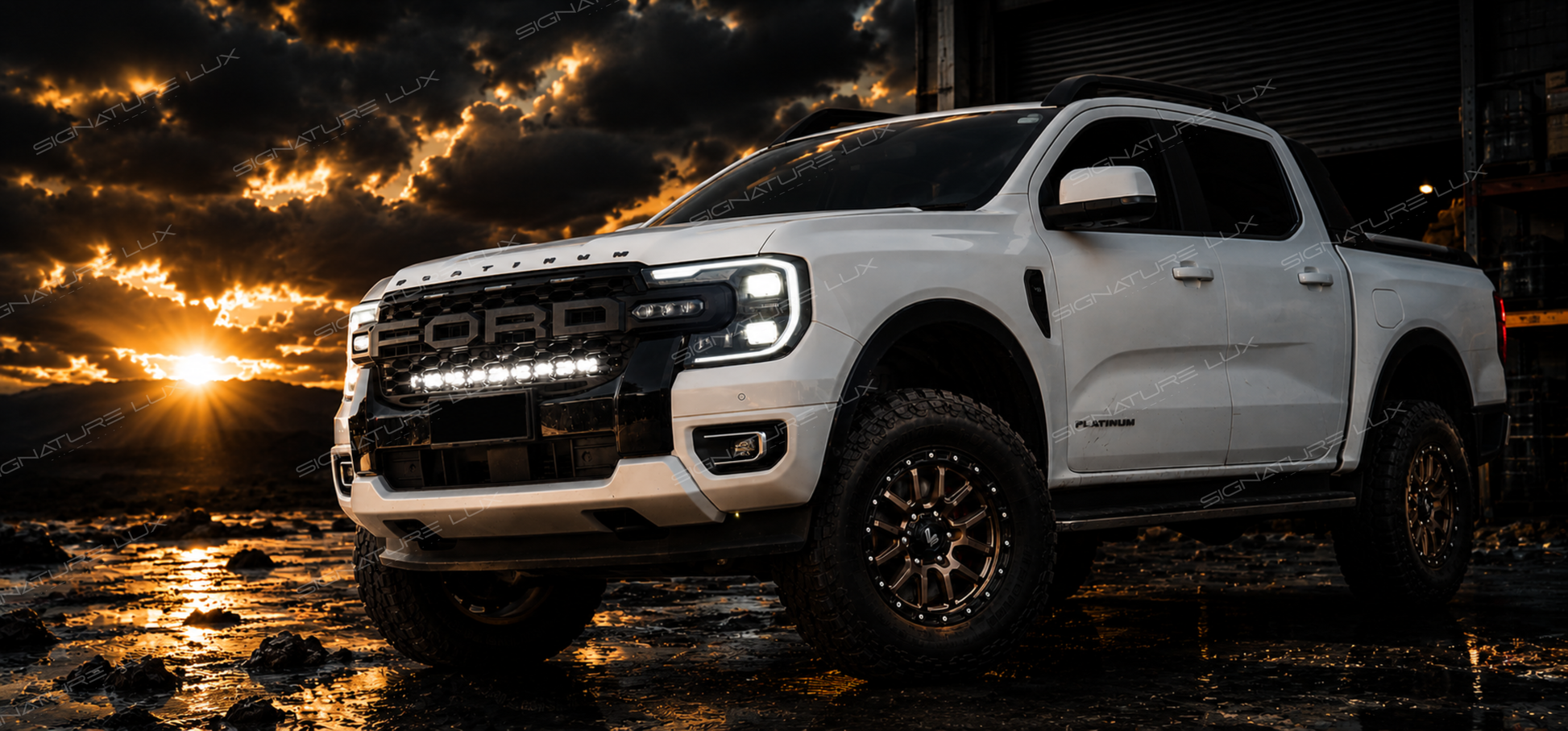

Cool White Main Beam

When activated, the powerful white driving beam provides long-distance illumination for off-road and rural driving.

• 6000K Cool White Output
• Driving Beam Pattern
• Can be linked to High Beam (Aux 5)
• Excellent long-range visibility

⚠️ Driving beam intended for off-road use only.

💡 Advanced TIR Optical Lens Technology

Built using premium optical polycarbonate TIR lenses to maximize beam efficiency and light projection.

Features:

• High light transmission
• Clear lens design
• Improved beam focus
• Reduced light scatter
• Excellent distance performance

🛡 Built Tough for Australian Conditions

Manufactured from premium materials designed to withstand harsh environments.

Construction

• CNC Machined 6063 Aluminum Housing
• UV Resistant Powder-Coated Finish
• High Thermal Efficiency Cooling Design
• Corrosion Resistant Construction

Built to handle:

• Dust
• Rain
• Mud
• Corrugations
• Extreme temperatures

🌧 IP68 Waterproof Protection

The TitanArc™ 30 is fully sealed against water and dust ingress.

IP68 Rated

• Waterproof
• Dustproof
• Pressure-Wash Safe
• Off-Road Ready

⚡ Smart Electrical Protection

Integrated protection systems help ensure reliable long-term operation.

Protection Features

• Reverse Polarity Protection
• Over Voltage Protection
• Under Voltage Protection
• Anti-Interference Design (EMC/RFI Suppression)

Operating Voltage

9–36V DC

Performance Specifications

Key Features

• Cool White Main Beam with Amber Backlight
• Optical Polycarbonate TIR Lens
• 16 × 10W High Output LEDs
• 9–36V DC Operating Voltage
• IP68 Waterproof Rating
• Clear Lens Design
• CNC'd 6063 Aluminum Housing
• Durable UV Resistant Powder Coating
• Black Stainless Steel Brackets & Hardware
• 550mm Input Wire with 3-Pin Female Connector

Warranty

✅ 24-Month Warranty

What's Included

• TitanArc™ 30" LED Light Bar
• Behind-Grille Mounting Brackets
• Wiring Harness
• Mounting Hardware
• Standard Packaging

TitanArc™ 30 – Hidden Power. Factory Style.

If you're looking for a behind-grille lighting solution that delivers serious performance while keeping your Next-Gen Ranger, Ranger Raptor, or Everest looking clean and factory-inspired, the TitanArc™ 30 is the perfect upgrade.

Amber Backlight Style by Day.

Powerful White Beam by Night.
