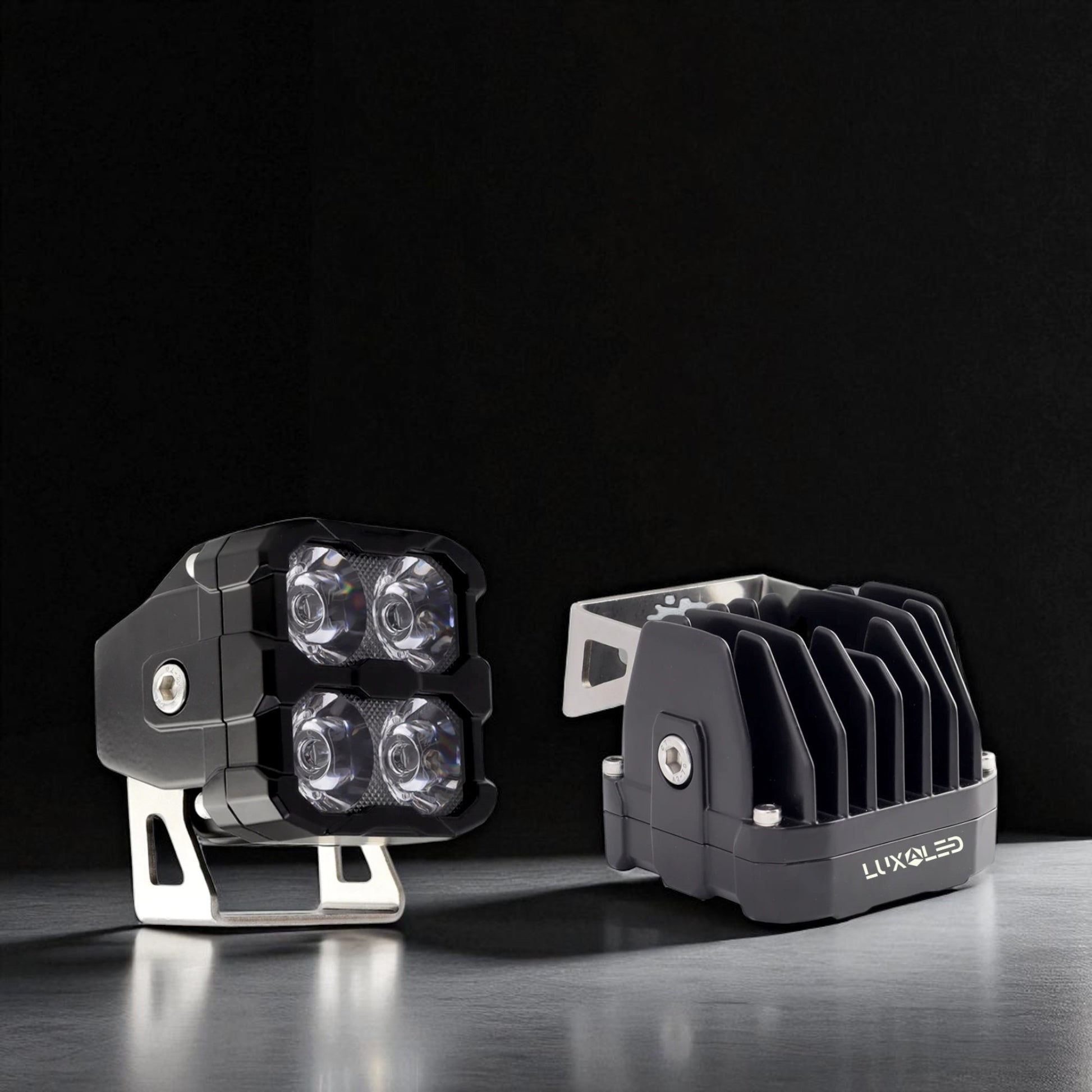

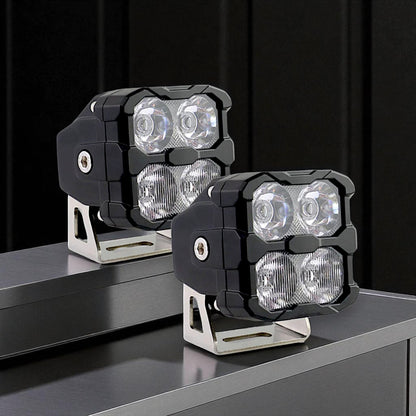

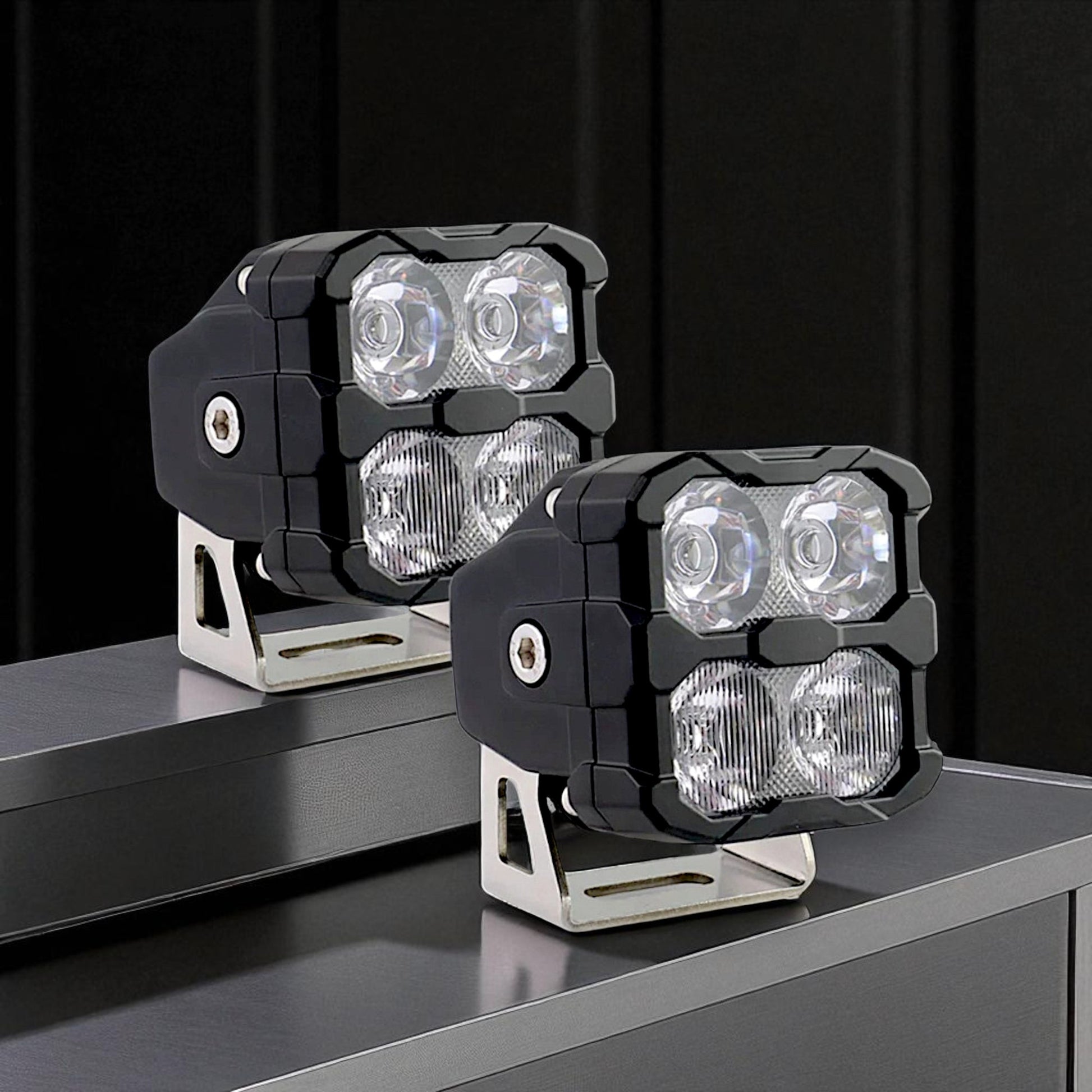

The LuxPod 40 Combo Ditch Lights deliver powerful performance and stylish design, ideal for serious off-roaders. Equipped with four 10W high-intensity LEDs and customized TIR projector lenses (Japanese PC, >93% light transmittance), they maximize brightness and beam precision while resisting scratches, scuffs, and fading.

A crisp cool white main beam ensures excellent visibility, while the independently controlled amber backlight adds both style and function—working as an auxiliary marker or warning light at night. Choose between Spot, Driving, or Combo optics for tailored illumination.

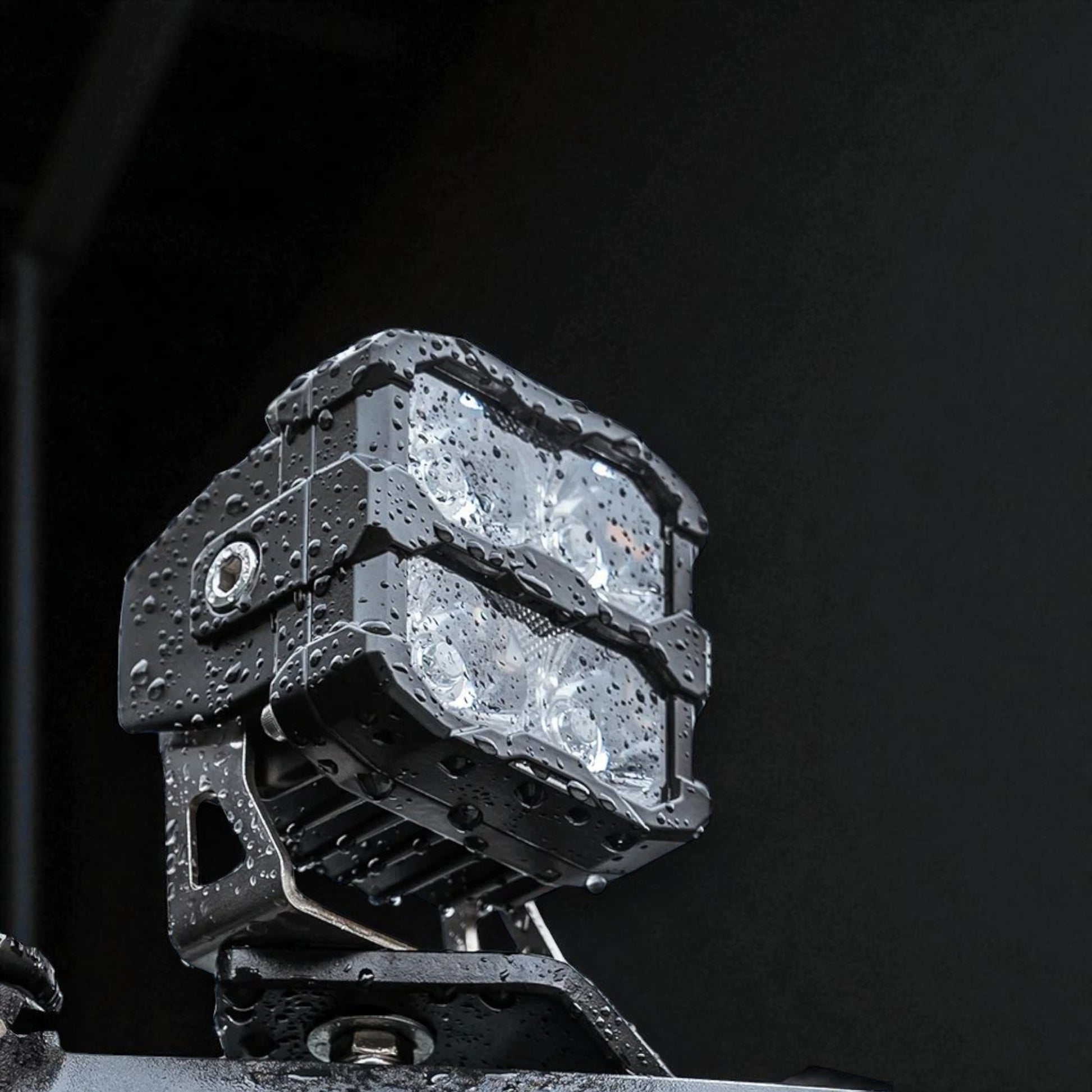

Engineered to last, the aviation-grade aluminum housing, UV-resistant powder coat, and IP68/IP69K waterproofing protect against dust, water, corrosion, and extreme weather. The active thermal system and cooling fins prevent overheating, while the 115° stainless steel bracket allows flexible installation.

Key Features

40W Output – 4 × 10W high-intensity LEDs.

TIR Optics – Japanese PC lenses with >93% transmittance for sharper beams.

Beam Options – Spot, Driving, or Combo beam patterns.

Dual Lighting – Bright cool white main beam + independently controlled amber backlight.

Durability – IP68/IP69K waterproof, submersible up to 1.2m, pressure washable.

Premium Build – Die-cast aviation aluminum housing, anti-UV polyester powder coat.

Smart Protection – Reverse polarity, high/low voltage, EMC/RFI-free, CE & RoHS compliant.

Thermal Control – Active heat management + heavy-duty passive cooling fins.

Mounting – 115° adjustable stainless steel bracket (304 grade, 2.5mm thick).

Wiring – 3-core bare input wire (Red: Main Beam +, White: Backlight +, Black: Ground).

Longevity – 50,000+ hour lifespan with 24-month warranty.

Technical Specifications
